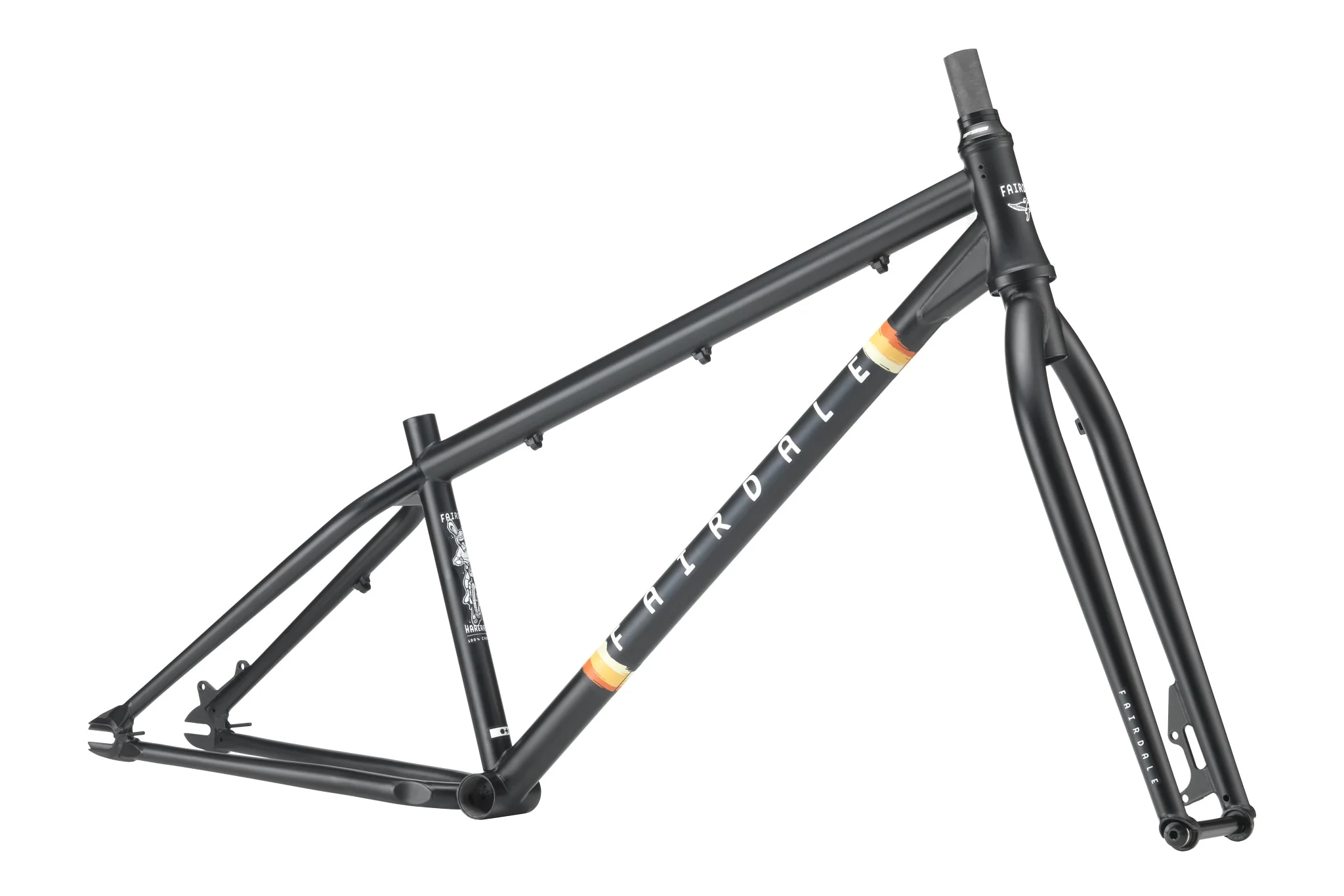

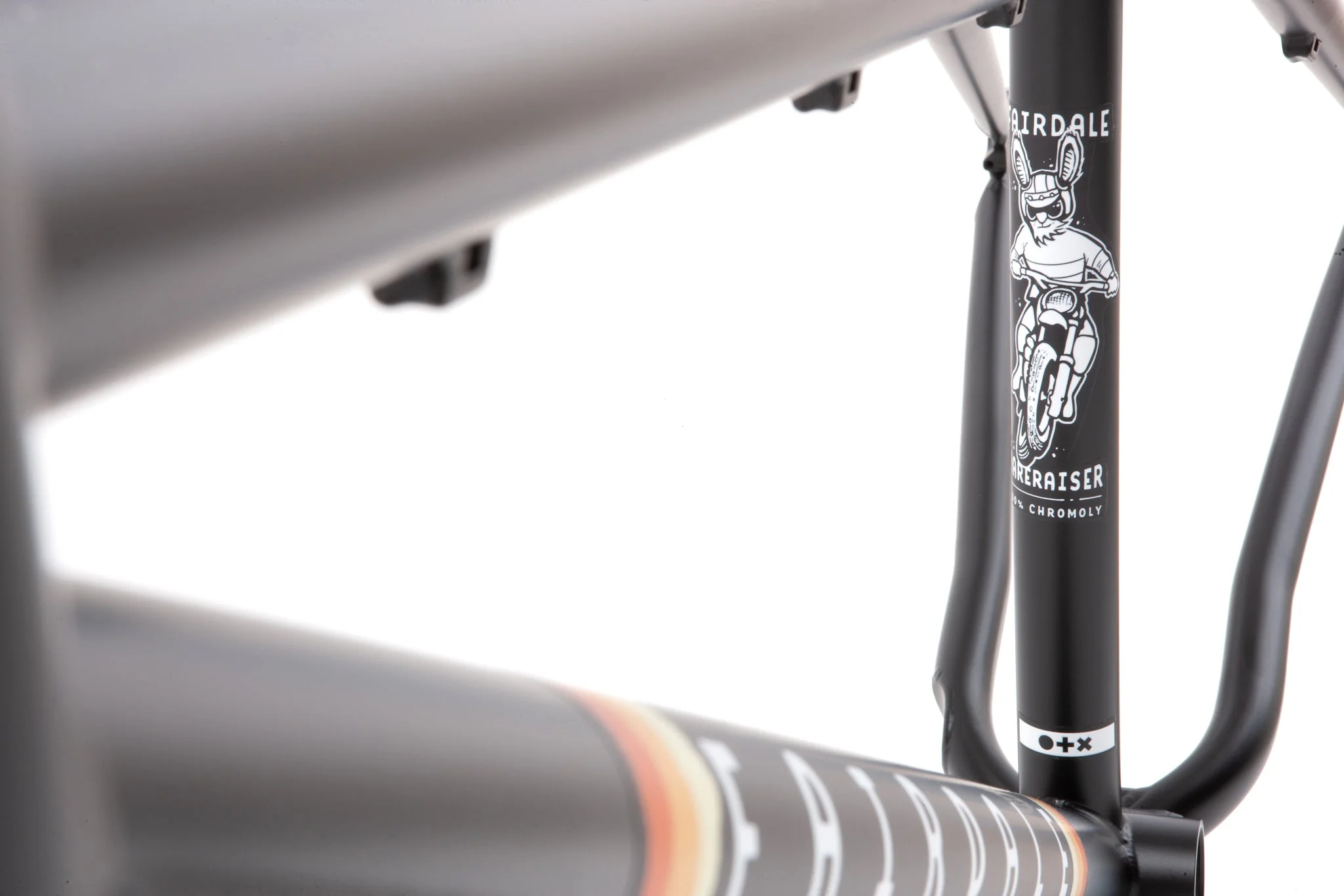

Fairdale Hareraiser 26" DJ Frame (Matte Black in S/M or M/L)

Introducing the Fairdale Hareraiser.

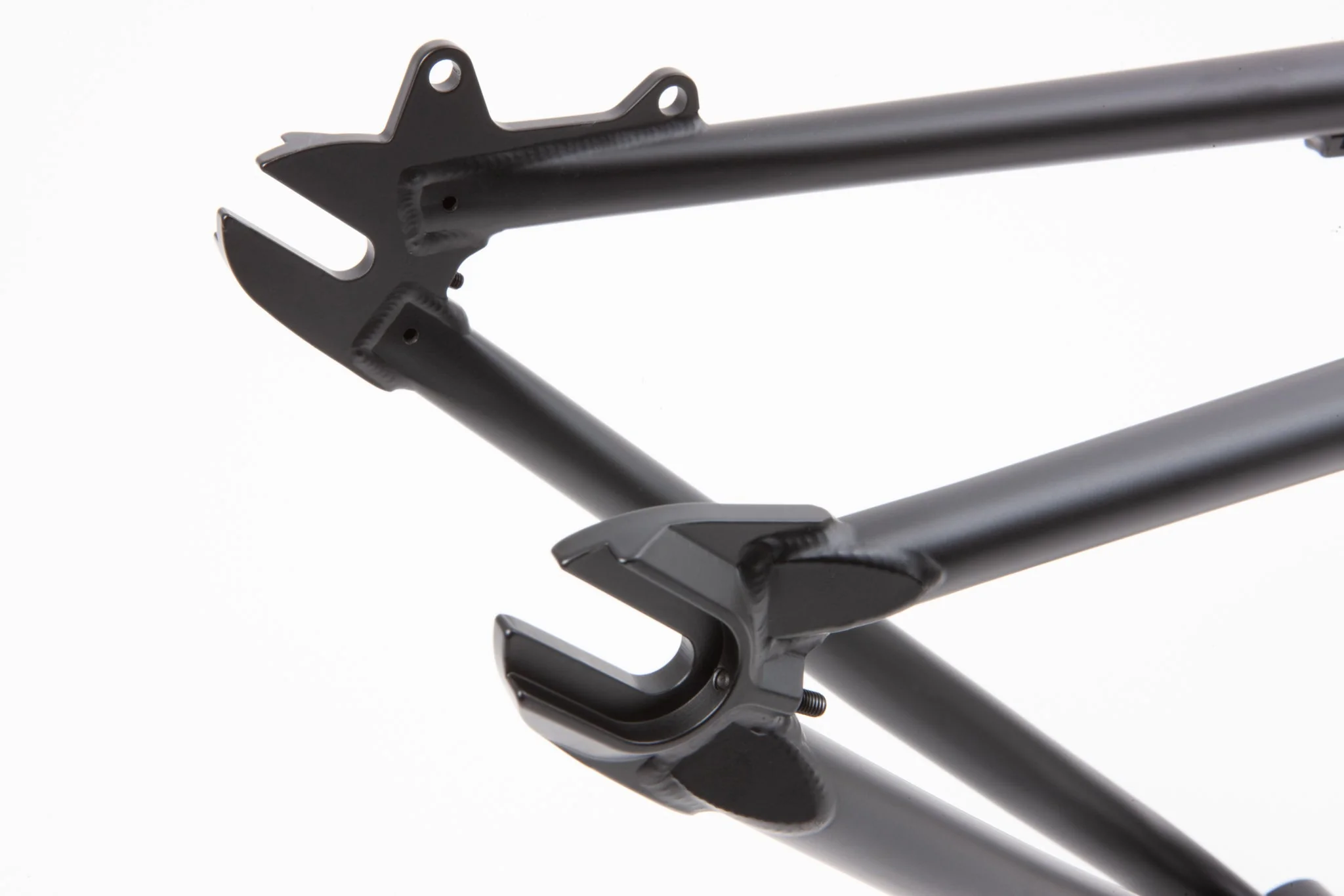

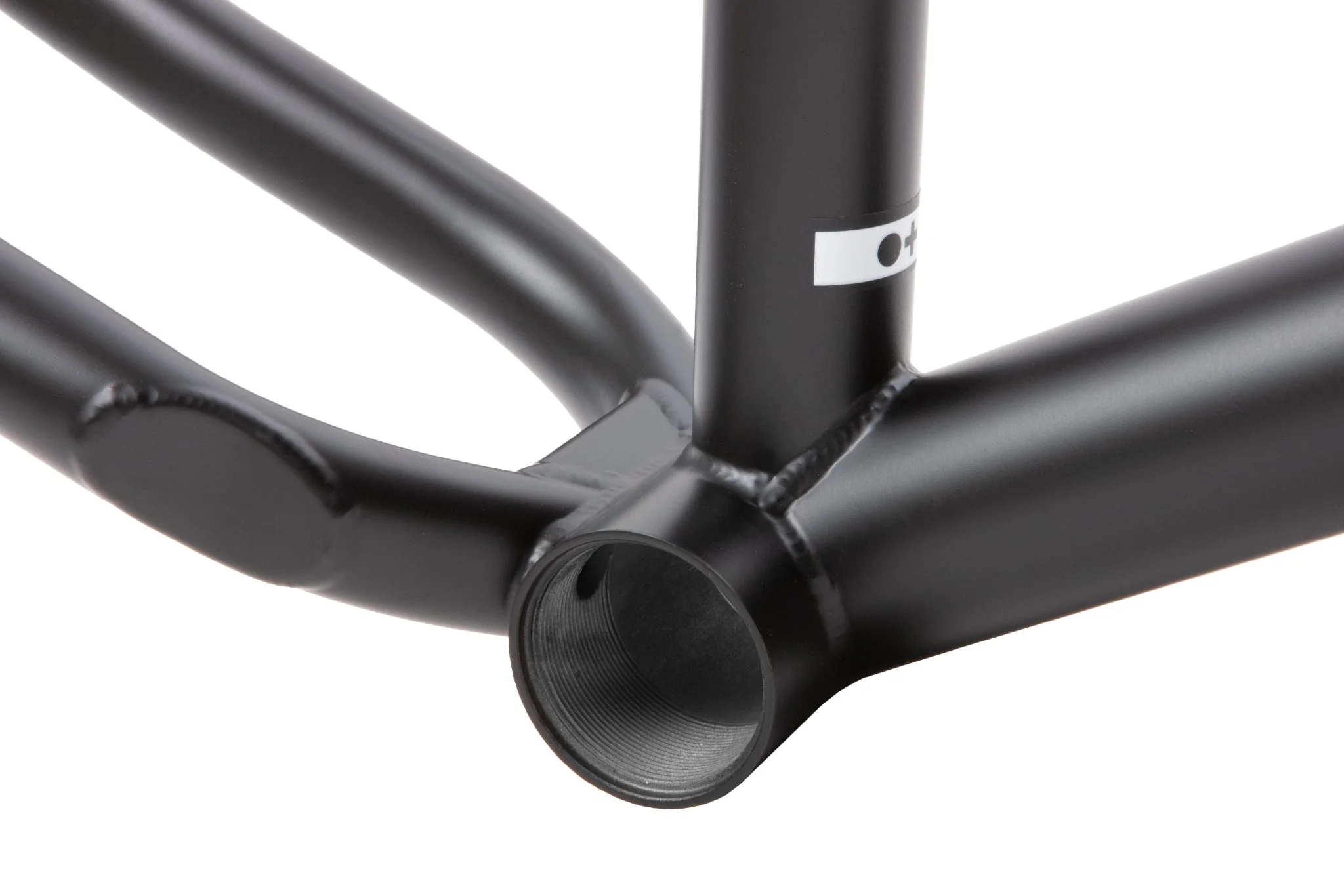

This fully capable 26" DJ frame is made of 100% 4130 chromoly with a 3/8" axle slot, integrated chain tensioners, BSA 73mm threaded bottom bracket, ultra-short chainstays and a tapered 1-1/8” to 1-1/2” head tube with removable tabs for a traditional BMX-style Gyro.

Designed from the ground up to make the transition between riding a MTB, DJ bike, and BMX as seamless as possible. FSA Orbit headset included with frame.

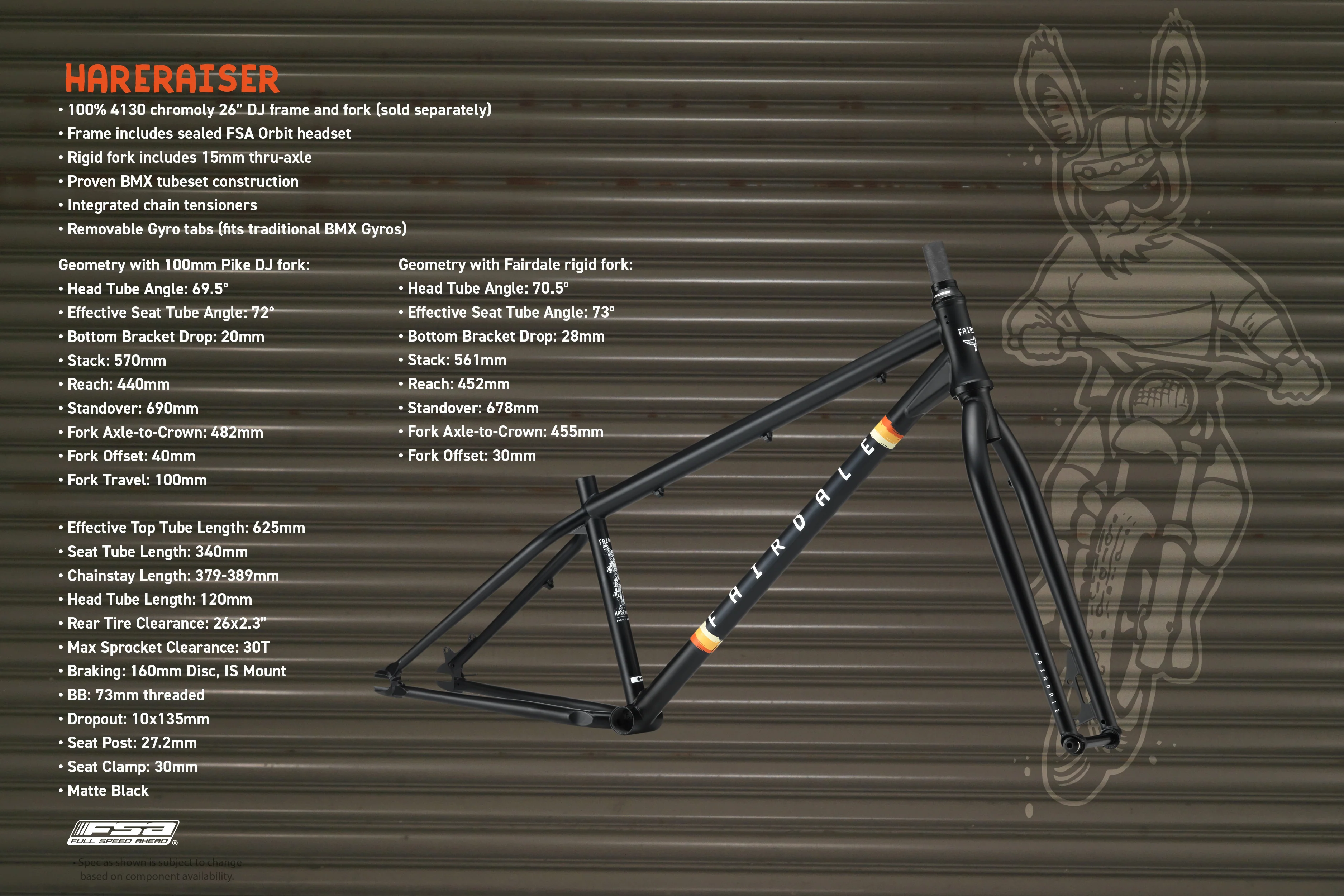

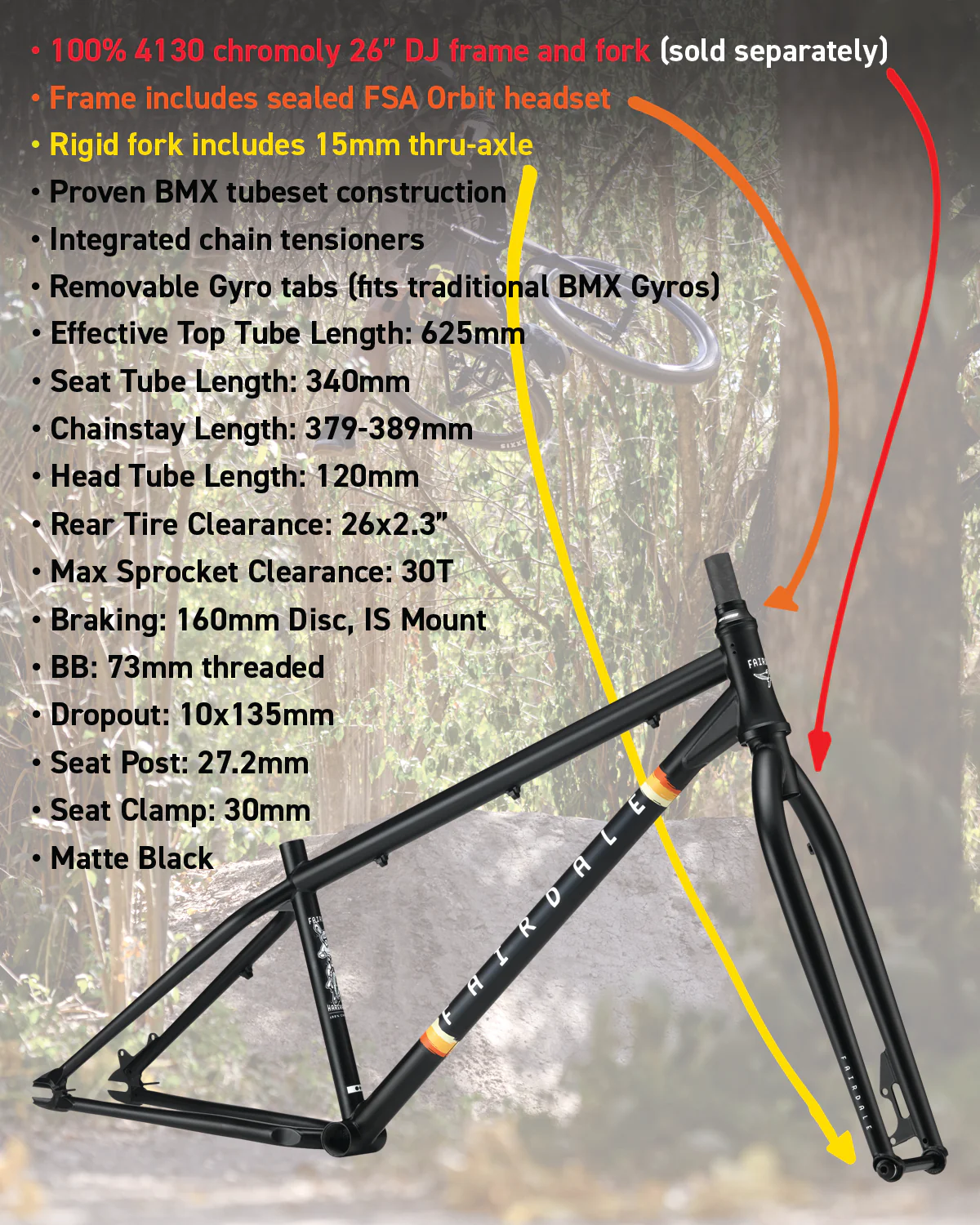

Features

• 100% 4130 chromoly DJ frame
• Frame includes sealed FSA Orbit headset
• Rigid fork includes 15mm thru-axle
• Proven BMX tubeset construction
• Integrated chain tensioners
• Removable Gyro tabs (fits traditional BMX Gyros)

Sizing

Small/Medium: 5'4" height and up
Medium/Large: 5'6" height and up

Sizing is approximate. Please consult with your local bike shop to assist with fit.

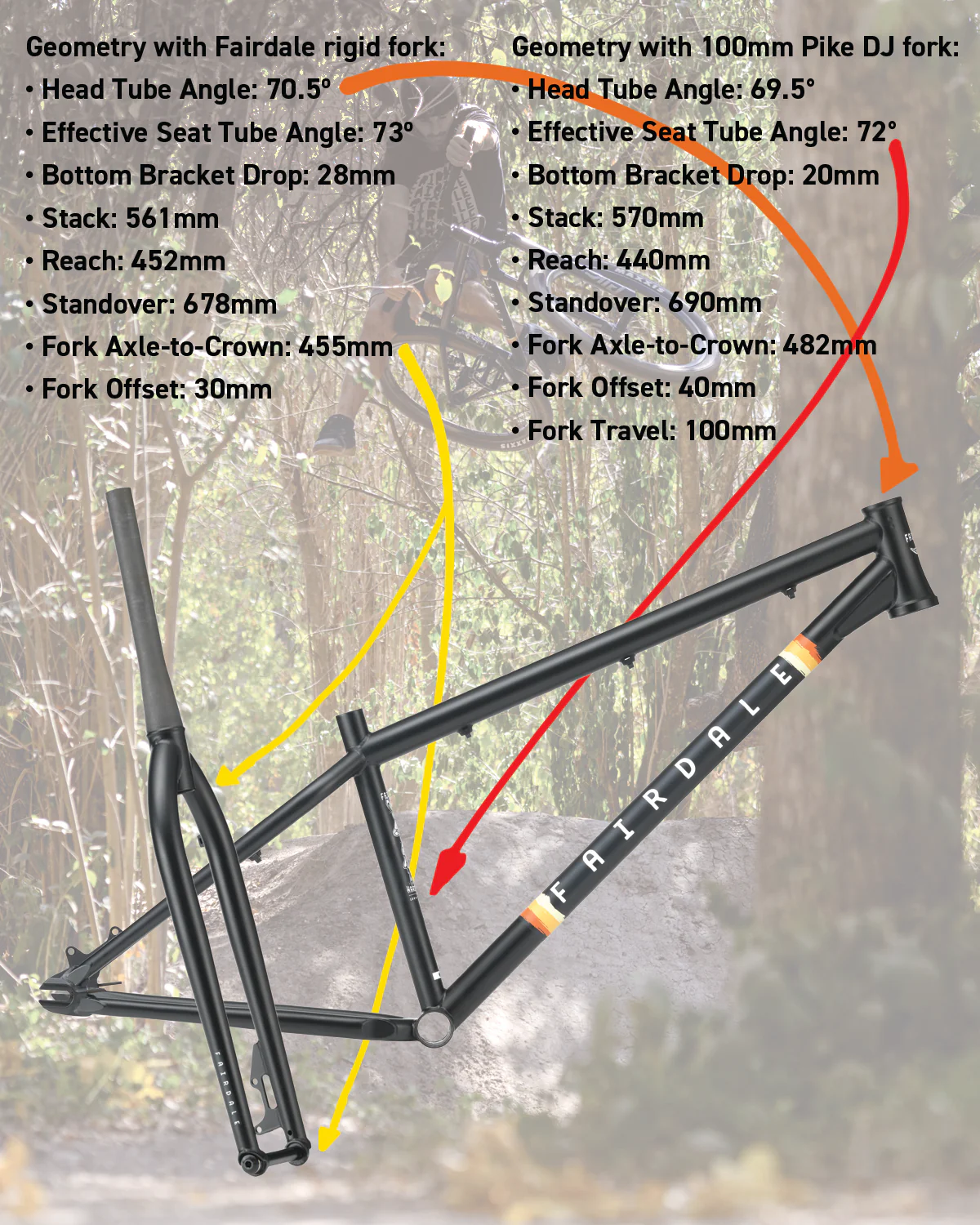

Geometry

Build	S/M Suspension	M/L Suspension	S/M Rigid	M/L Rigid
Fork Travel	100mm	100mm	100mm	N/A
Fork Axle to Crown	482mm	482mm	455mm	455mm
Fork Offset	40mm	40mm	30mm	30mm
Top Tube (Effective)	600mm	625mm	600mm	625mm
Seat Tube (BB Center to TT Center)	340mm	340mm	340mm	340mm
Seat Tube Angle	72°	72°	73°	73°
Head Tube Length	120mm	120mm	120mm	120mm
Head Tube Angle	69.5°	69.5°	70.5°	70.5°
Chain Stay Length	379-389mm	379-389mm	379-389mm	379-389mm
Standover	690mm	690mm	681mm	678mm
Stack	570mm	570mm	562mm	561mm
Reach	415mm	440mm	427mm	452mm
BB Drop	20mm	20mm	28mm	28mm
Rear Dropout Spacing	10x135mm	10x135mm	10x135mm	10x135mm
BB Type	73mm threaded	73mm threaded	73mm threaded	73mm threaded
Seat Post	27.2mm	27.2mm	27.2mm	27.2mm
Seat Clamp	30mm	30mm	30mm	30mm
Rear Tire Clearance	2.3"	2.3"	2.3"	2.3"
Wheel Size	26"	26"	26"	26"
Weight	6.17lbs 2.78kg	6.17lbs 2.78kg	6.17lbs 2.78kg	6.17lbs 2.78kg
