The Story

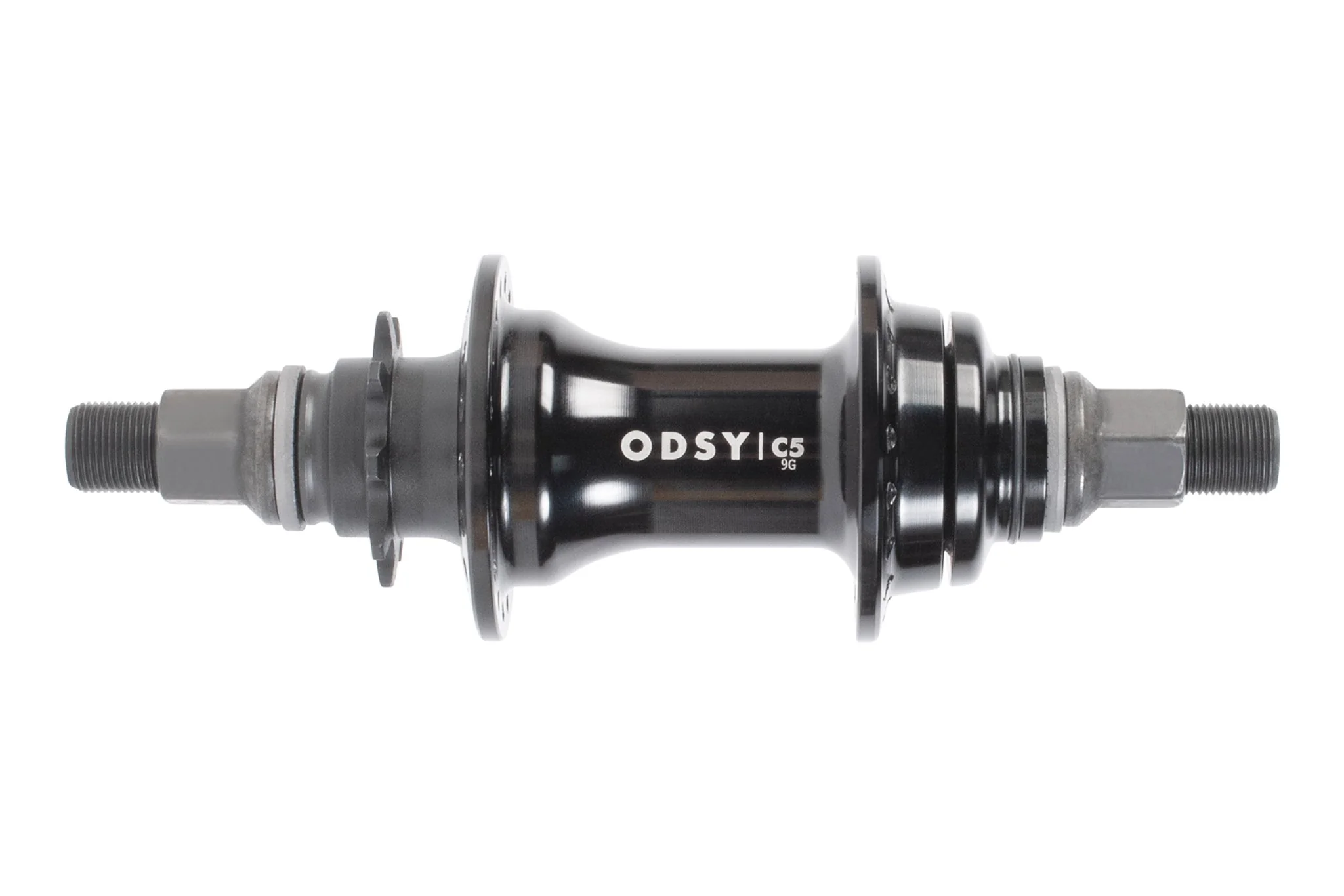

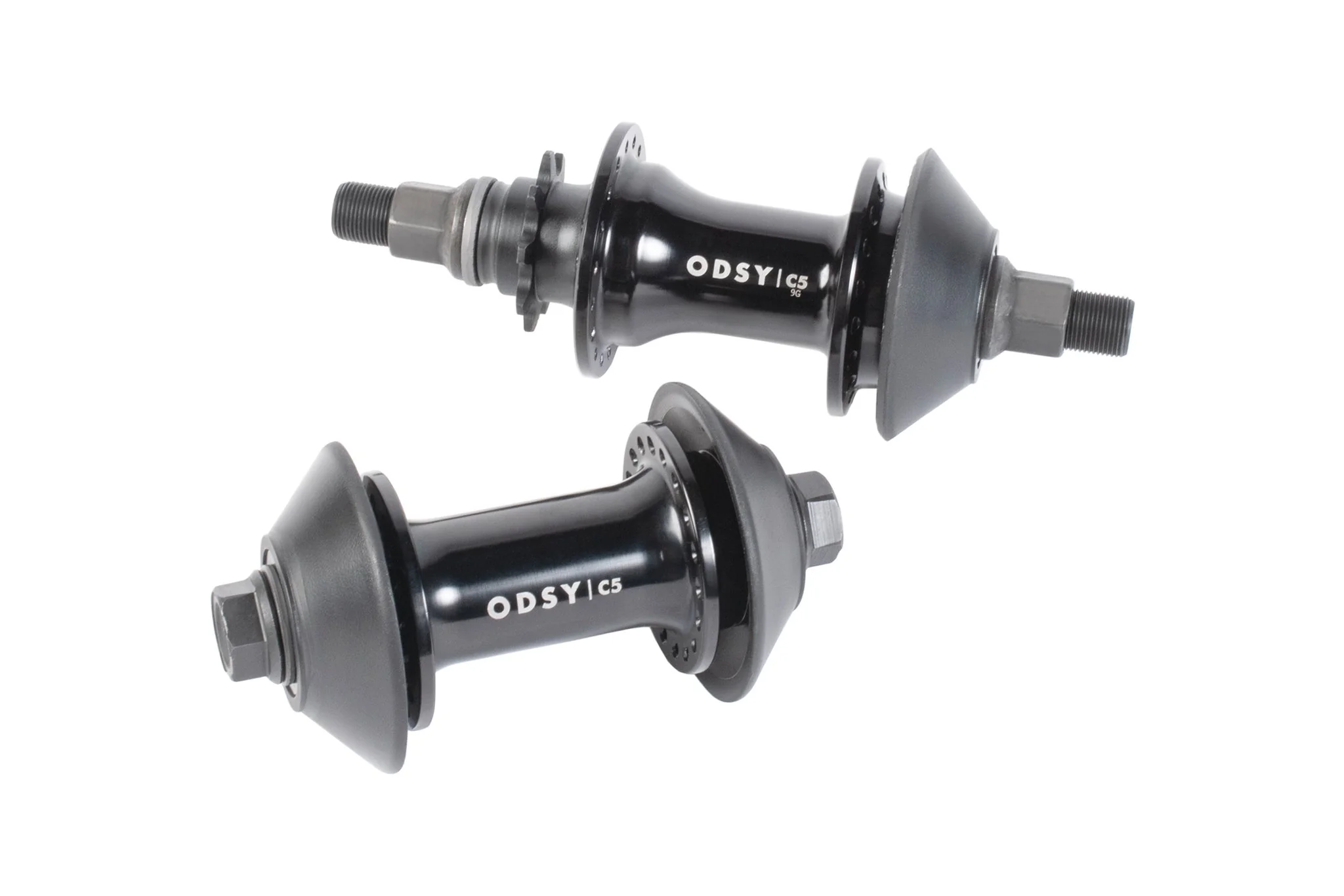

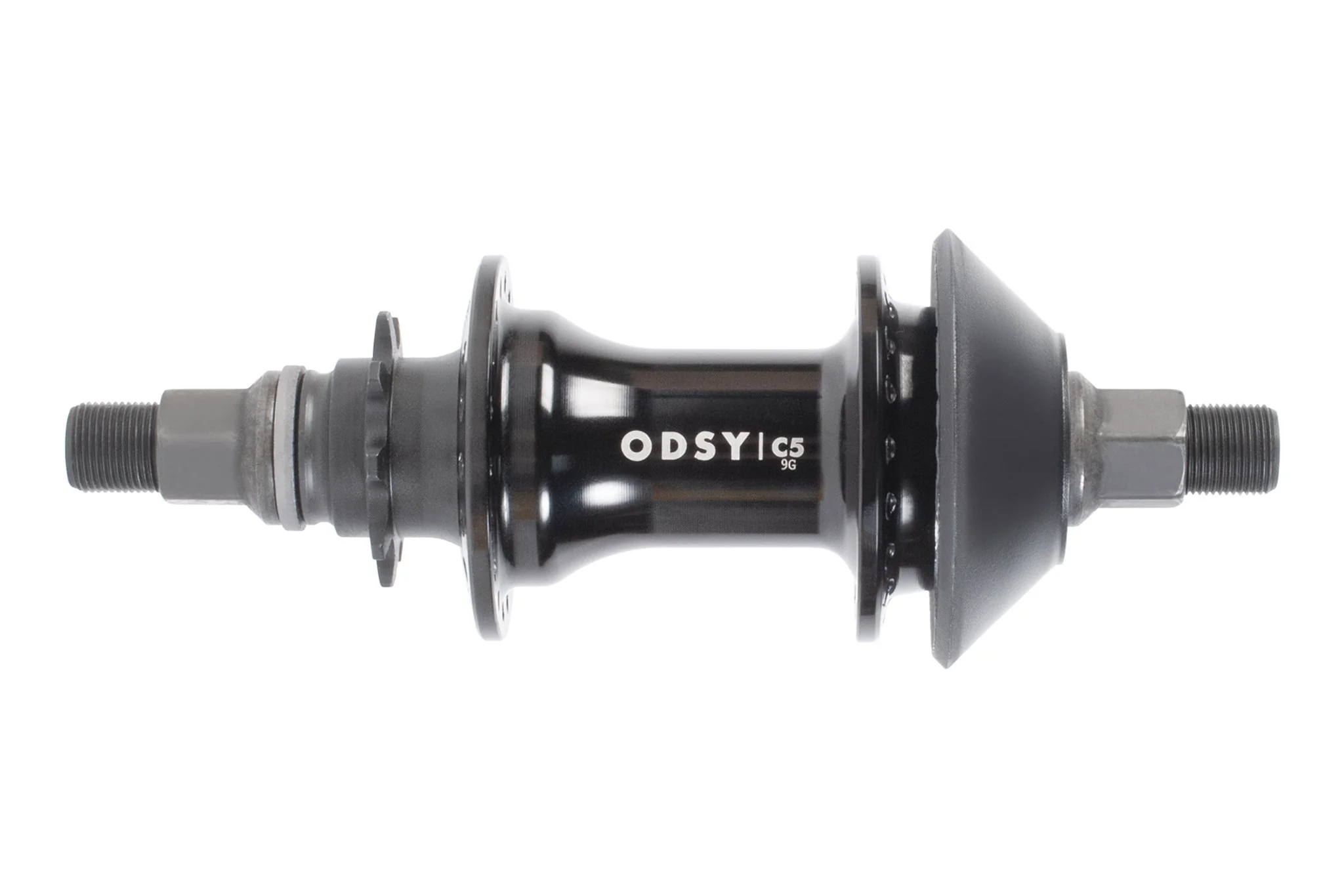

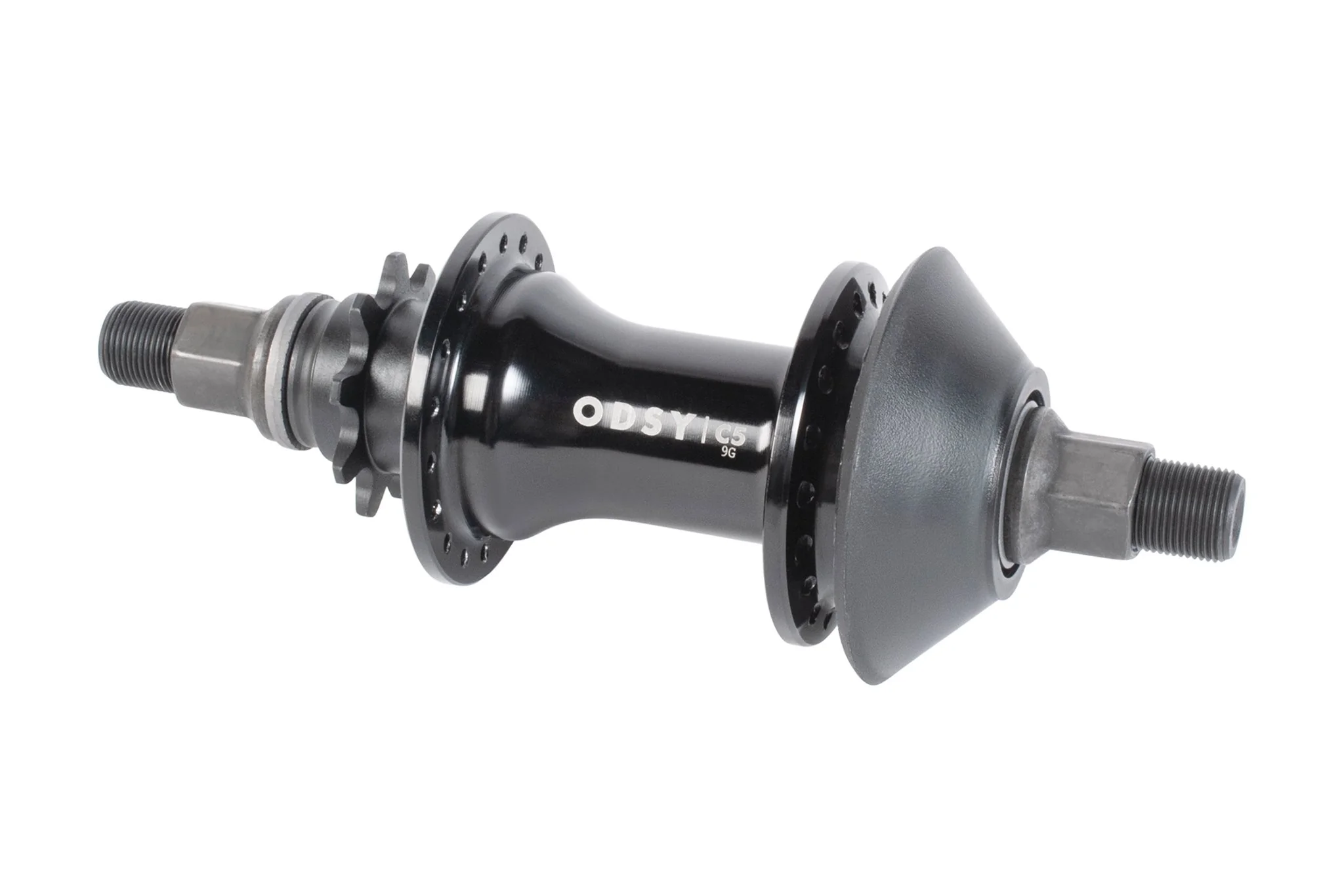

The C5 is a strong, drive switchable, affordably priced cassette hub with a 14mm chromoly male axle. The LHD/RHD compatible 9T driver rolls on three precision, sealed cartridge bearings. A replaceable plastic hub guard is included.
Available as hub only or as a complete wheel laced to an Odyssey Quadrant Rim.
Features
- 36-H, 6061 T-6 aluminum hub shell
- 14mm, 4130 chromoly hollow axle, w/6mm hex broaching
- 9T driver with 3-Pawl independent spring design
- RHD/LHD switchable
- Removable plastic hub guards (compatible with Odyssey/G-Sport hubs)
- 6802 sealed cartridge driver bearings (3)
- 6903 sealed cartridge hub shell bearings (2)
Specs
Drive Side Effective Flange Diameter: 49mm
Non-Drive Side Effective Flange Diameter: 49mm
Drive Side Flange to Center Distance: 27mm
Non-Drive Side Flange to Center Distance: 30mm
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The C5 is a strong, drive switchable, affordably priced cassette hub with a 14mm chromoly male axle. The LHD/RHD compatible 9T driver rolls on three precision, sealed cartridge bearings. A replaceable plastic hub guard is included.
Available as hub only or as a complete wheel laced to an Odyssey Quadrant Rim.
Features
- 36-H, 6061 T-6 aluminum hub shell
- 14mm, 4130 chromoly hollow axle, w/6mm hex broaching
- 9T driver with 3-Pawl independent spring design
- RHD/LHD switchable
- Removable plastic hub guards (compatible with Odyssey/G-Sport hubs)
- 6802 sealed cartridge driver bearings (3)
- 6903 sealed cartridge hub shell bearings (2)
Specs
Drive Side Effective Flange Diameter: 49mm
Non-Drive Side Effective Flange Diameter: 49mm
Drive Side Flange to Center Distance: 27mm
Non-Drive Side Flange to Center Distance: 30mm
